At its’ heart, a next generation multi-die Cree XLamp XHP50.2 LED provides unparalleled output, efficiency, and reliability. A unique light head design offers improved heat sinking and features a cross-drilled water channel that provides a direct thermal path from the back side of the LED chip to the water for maximum output and efficiency. A magnetic rotary switch controls four modes of operation: High, Medium, Low, and Strobe.
An integrated microprocessor control unit continuously monitors battery voltage and temperature to keep the light operating at peak efficiency. As battery voltage drops, light output steps down, eliminating the possibility of suddenly being left in the dark due to a dead battery. The light alerts the diver of this step down with a series of flashes. After this step down, the light produces a minimum of another four hours of usable light.
In a sea of cheaply made imports, the HP50 stands out and is proudly designed, manufactured, and assembled in the USA.
- Designed, manufactured, and assembled in the USA
- Cree XLamp XHP50.2 LED driven @ 24 W produces over 3500 lumens @ 6500 kelvin
- Beam Angle: 10-degree spot
- Magnetic rotary switch activated
- Integrated microprocessor control unit monitors temperature and battery voltage
- Blinks 3 times to indicate low battery and automatically steps output down to increase usable burn time
- 4 Output Modes: High power, medium power, low power, and strobe
- Durable CNC machined Delrin and hard-coat anodized aluminum body construction
- Improved heat sinking and cross-drilled light head allows water flow through and provides a direct thermal path from the back side of the LED chip to the water for maximum output and efficiency
- Depth Rating: 500 feet (152 m)
- Handheld Conversion Kit (LT6400-CONV)
- Expedition Battery Canister (LT 6344)
- Slimline Battery Canister (LT 6320)
- Corded Canister Adapter – Standard Lid
- Corded Canister Adapter – 70 Degree Lid
- Li-Ion Smart Charger for Canister Batteries (LT 6024)
- 4 cell 18650 Li-Ion Charger for Handheld (RP9992-CHARGER)
|

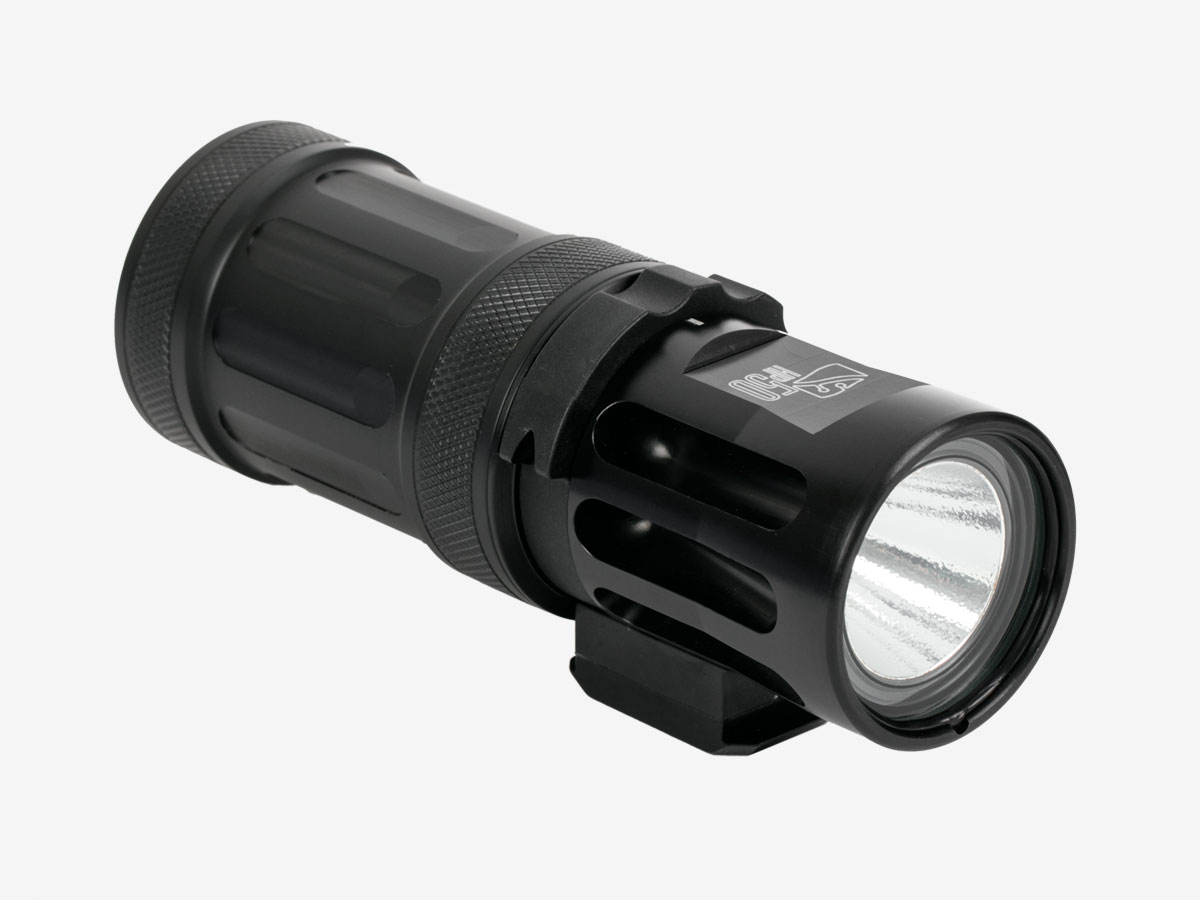

HP50 HANDHELD
|

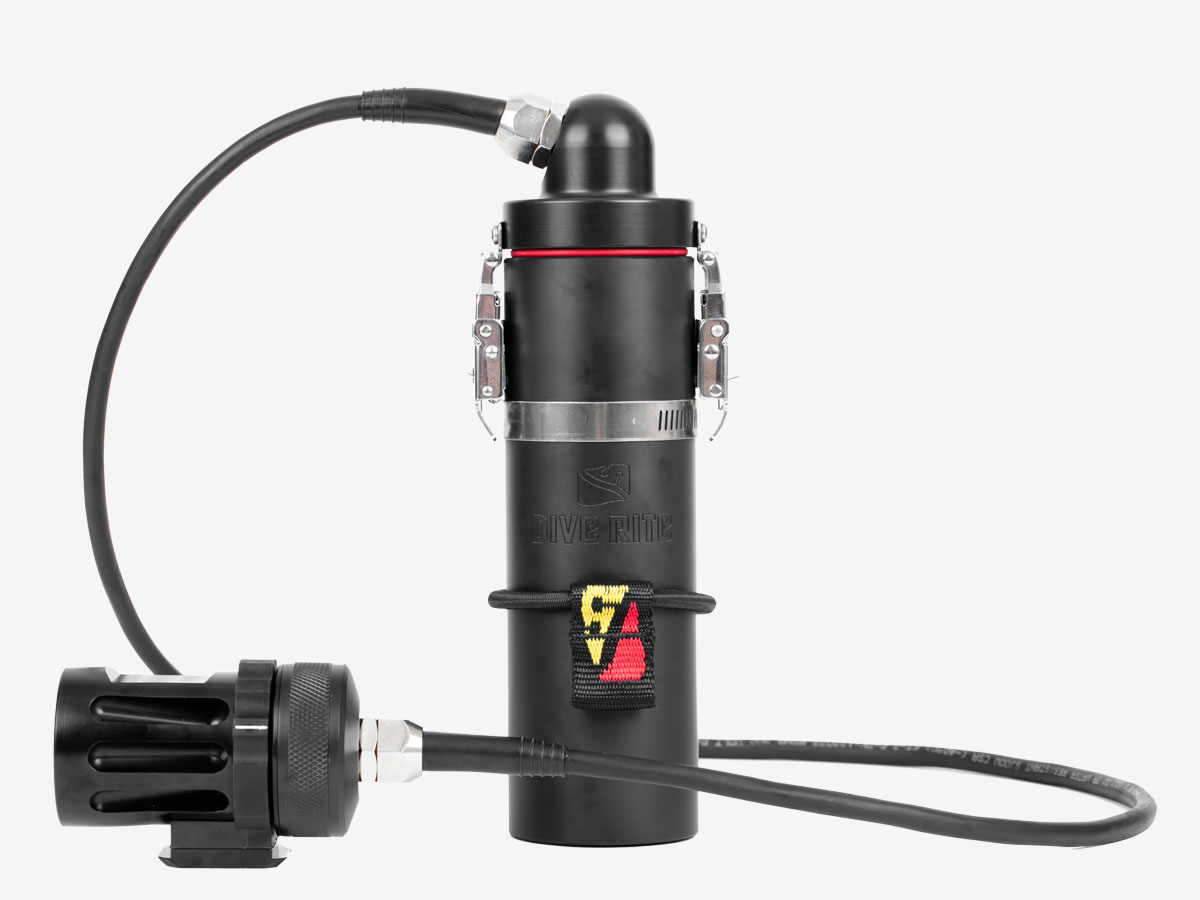

HP50 SLIMLINE CANISTER
|

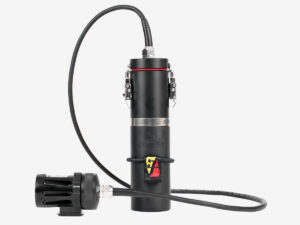

HP50 EXPEDITION CANISTER
|
|
|---|---|---|---|
| BATTERIES | 4 x 18650 3500 mAh Li-Ion (User Replaceable) | 100 watt-hour Sealed Li-Ion | 150 watt-hour Sealed Li-Ion |
| BURN TIME ON HIGH | 1.5 hours | 3.25 hours | 5 hours |
| BURN TIME ON MEDIUM | 3 hours | 6.5 hours | 10 hours |
| BURN TIME ON LOW | 30 hours | 65 hours | 100 hours |
| BURN TIME ON STROBE | 15 hours | 30 hours | 50 hours |
| LIGHT HEAD SIZE | 3.5 in (8.9 cm) length, 2 in (5 cm) diameter | 3.5 in (8.9 cm) length, 2 in (5 cm) diameter | 3.5 in (8.9 cm) length, 2 in (5 cm) diameter |
| HANDHELD LIGHT SIZE | 6.4 in (16.3 cm) length, 2.15 in (5.46 cm) diameter | N/A | N/A |
| CANISTER SIZE | N/A | 9 in (22.88 cm) height, 2.6 in (6.6 cm) diameter | 11 in (27.94 cm) height, 2.6 in (6.6 cm) diameter |
| WEIGHT (READY TO DIVE) | 1.4 lbs (0.64 kg) | 3.8 lbs (1.72 kg) | 4.1 lbs (1.87 kg) |
| BUOYANCY (FRESH WATER) | 0.6 lbs (0.27 kg) negative | 1.25 lbs (0.56 kg) negative | 1.25 lbs (0.56 kg) negative |
| INCLUDED ITEMS |
|
|
|
| PART # | LT6400 | LT6600 | LT6600-EXPEDITION |

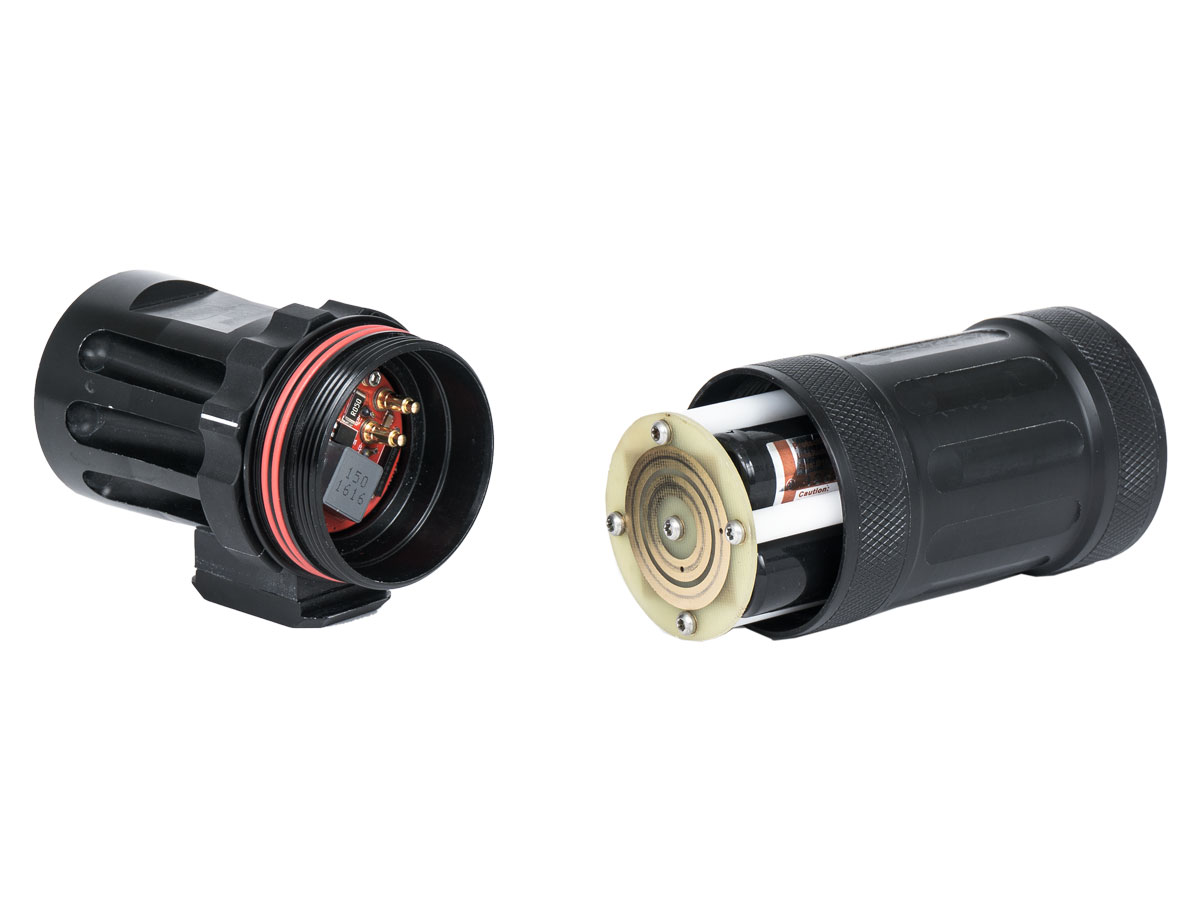

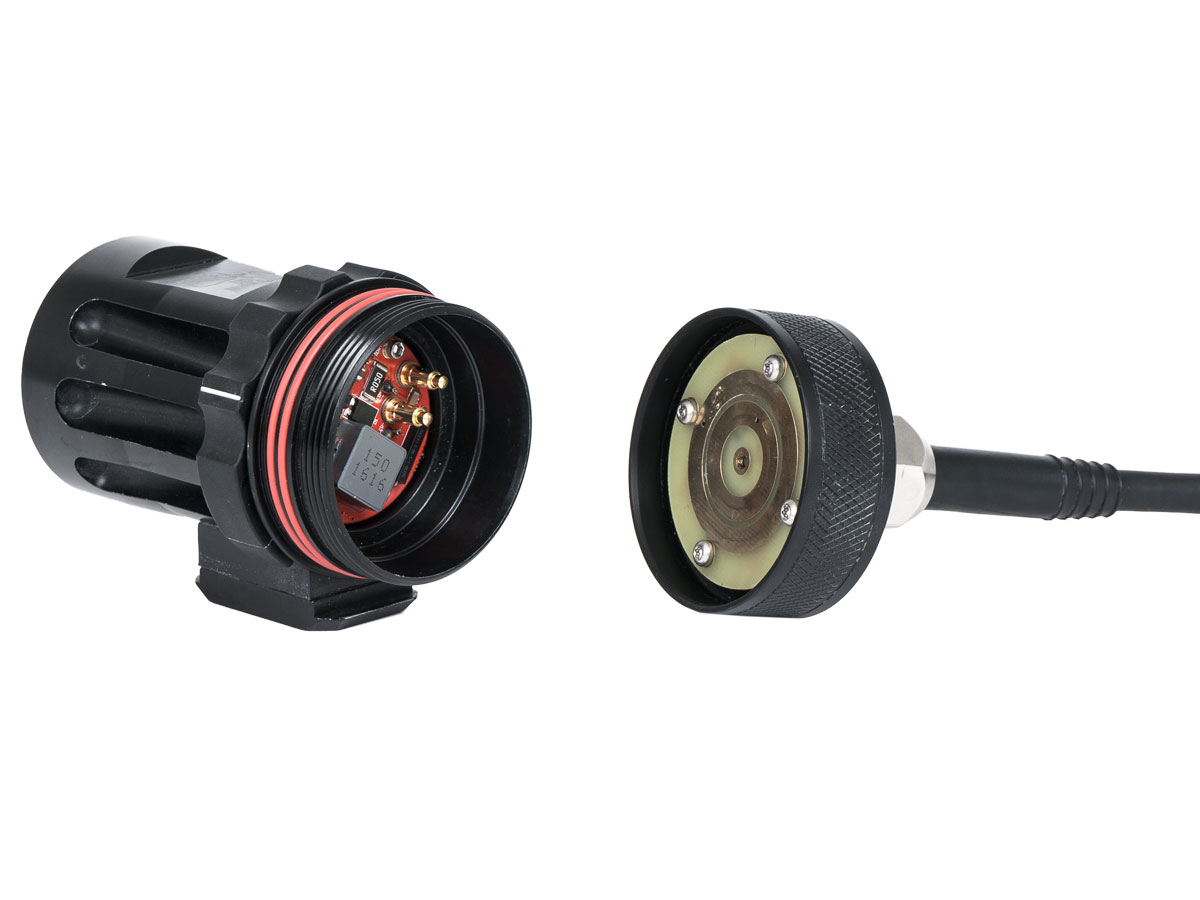

One light, infinite possibilities. The HP50 gives the diver the flexibility to easily convert between handheld and canister versions using the same light head. Using the simple threaded, double O-ring sealed connection, quickly convert between the 4 x 18650 handheld battery pack and the corded canister adapter. The light and corded adapter are completely compatible with either the 100 watt-hour Slimline Canister battery or the 150 watt-hour Expedition Canister battery.

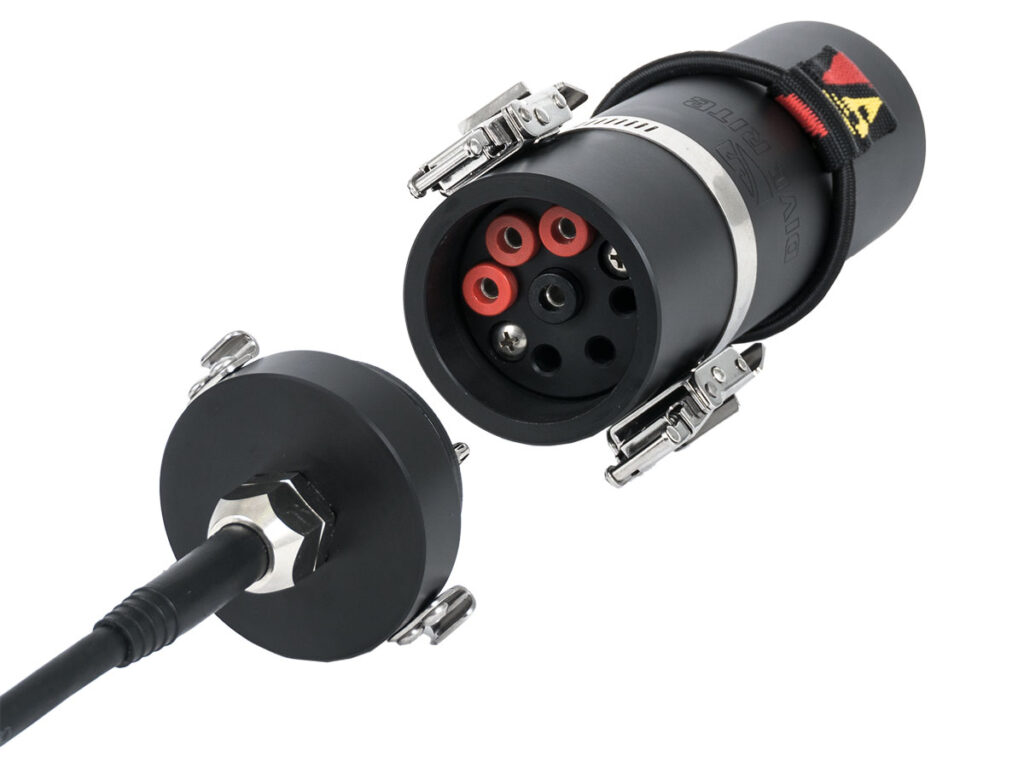

The 100 watt-hour canister consists of two individual 50 watt-hour packs and the 150 watt-hour canister consists of three individual 50 watt-hour packs. The individual battery packs are internal and are not connected together until the canister lid is installed in the activated position. When the lid is installed in the travel position (rotated 180-degrees) the packs remain disconnected from each other to prevent accidental activation. All battery options are UN 38.3 test compliant and are safe for air transport.
Corded adapters are available in either standard straight lid or optional 70-degree lid versions for improved cord routing when butt or back mounting the canister. Additional battery packs, corded adapters, and chargers are available separately.

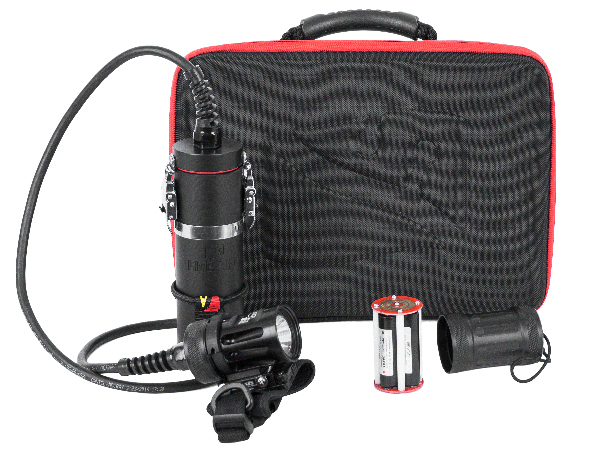

Get the best of both worlds with the Combo Pack! (LT 6450)
The combo pack includes the HP50 light head, slimline canister battery, corded adapter, handheld battery pack, chargers, travel case, and soft handmount with QRM mounting system.
